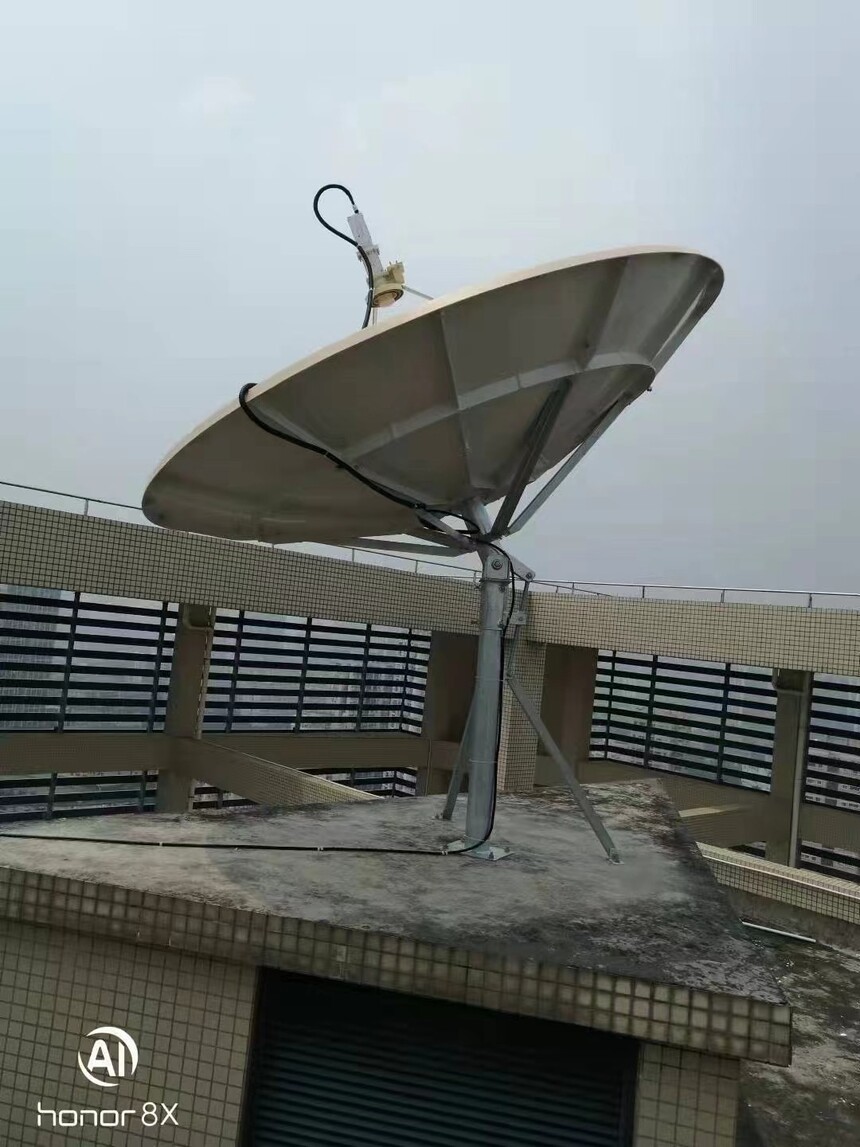

Satellite antenna 1.8M C FREQUENCY RECEIVING ANTENNA

Main tech parameters

Frequency range：3.4～4.2GHz/3.625GHz-4.2GHz/3.7-4.2GHz

Ku band 10.7-14.5GHz

Gain： G≥35.5dB

VSWR＜1.35

Reflector: One piece

Polarization mode:：linear polarization(Pan/Tilt Adjustment

）

Tactic form：one piece SMC

Pitching/Orientation：manual adjustment

Bearing the adjusting rang is ：0°—360°

The adjusting range of elevation：0°—90°

Wind loading rating：operation under 10 wind ,normal under

12 wind

Temperature：-45℃ - 120℃

Humidity：5% -95%

Atmospheric Conditions：Salt , Pollutants and Contaminants as encountered in coastal and industrial areas   Reflector material：Glass fiber reinforced unsaturated polyester sheet molding compound（SMC) Reflective surface thickness：3mm
