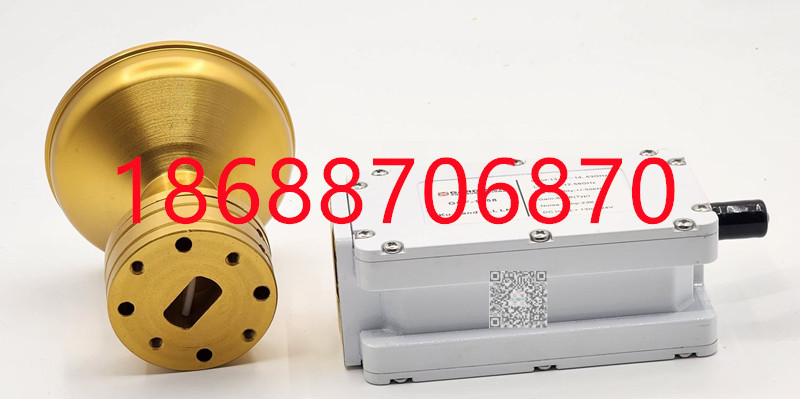

Ka LNB馈源 Gardiner 17.2-31GHz

The new LNB has Alarm and Monitoring & Control as standard via Modbus RTU RS 485 that allows surveillance from a PC.  • Auto switch Ext. 10 MHz ref. / Internal ±2.5 ppm

• High P1dB and IP3 • Wide operating temperature range • Standard enclosure fixing points • Standard Alarm and Monitoring & Control via Modbus RTU RS485  KEY SPECIFICATIONS

Band Ka-Band Input Frequency Band 1 Ka-Band: 17.20 - 18.20 GHz Input Frequency Band 2 Ka-Band: 18.20 - 19.20 GHz Input Frequency Band 3 Ka-Band: 19.20 - 20.20 GHz Input Frequency Band 4 Ka-Band: 20.20 - 21.20 GHz Input Frequency Band 5 Ka-Band: 21.20 - 22.20 GHz Input Frequency Band 6 Ka-Band:27.00-28.50    GHz Input Frequency Band 7 Ka-Band:27.50-29.00    GHz Input Frequency Band 8 Ka-Band:28.00-29.50    GHz Input Frequency Band 9 Ka-Band:28.50-30.00    GHz Input Frequency Band 10 Ka-Band: 27.5-31       GHz Input Frequency Band 11 Ka-Band:29.00-31.00    GHz Input Frequency Band 12 Ka-Band:29.50-31.00    GHz Input Frequency Band 13 Ka-Band:30.00-31.00    GHz Input Frequency Band 14 Ka-Band:30.50-31.00    GHz Lo Stability Phase Locked to External Reference Lo Type Auto switch External/Internal Noise Figure 2.5 dB typ Output Frequency 1 L-Band: 950 - 1950 MHz Output Frequency 2 L-Band: 950 - 1950 MHz Output Frequency 3 L-Band: 950 - 1950 MHz Output Frequency 4 L-Band: 950 - 1950 MHz Output Frequency 5 L-Band: 950 - 1950 MHz Output Frequency 6 L-Band: 950-2450 MHz Output Frequency 7 L-Band: 950-2450 MHz Output Frequency 8 L-Band: 950-2450 MHz Output Frequency 9 L-Band: 950-2450 MHz Output Frequency 10 L-Band: 950-2450 MHz Output Frequency 11 L-Band: 950-2450 MHz Output Frequency 12 L-Band: 950-2450 MHz Output Frequency 13 L-Band: 950-1950 MHz Output Frequency 14 L-Band: 950-1450 MHz Product Family 9000X5 Series RF SPECIFICATIONS Control Signal 1 13 V Control Signal 2 13V & 22 KHz tone Control Signal 3 18 V Control Signal 4 18V & 22 KHz tone Control Signal 5 22 V Control Signal 6 13 V Control Signal 7 13V & 22 KHz tone Control Signal 8 18 V Control Signal 9 18V & 22 KHz tone Control Signal 10 22 V Control Signal 11 13 V Control Signal 12 18 V Conversion Gain 60 dB typ Input VSWR 3.5 : 1 Lo Frequency 1 16.25 GHz Lo Frequency 2 17.25 GHz Lo Frequency 3 18.25 GHz Lo Frequency 4 19.25 GHz Lo Frequency 5 20.25 GHz Lo Frequency 6 26.05GHz Lo Frequency 7 26.55GHz Lo Frequency 8 27.05GHz Lo Frequency 9 27.55GHz Lo Frequency 10 28.05GHz Lo Frequency 11 28.05GHz Lo Frequency 12 28.55GHz Lo Frequency 13 29.05GHz Lo Frequency 14 29.55GHz Output VSWR 2.0 : 1 INTERFACE SPECIFICATIONS RF Input Connector WR-42 waveguide grooved RF Output Connector N-50 Ohm/F-75 Ohm/or SMA female 50Ω ENVIRONMENTAL SPECIFICATIONS Temperature Operational -40 to +60°C Temperature Storage -40 to +80°C Weight 550g PHYSICAL SPECIFICATIONS Dimensions (LxWxH) 143 x 67 x 39 mm GARDINER是高性能，高质量，和无与伦比的耐用性的代名词。 GARDINER 的 LNB 频率范围包括 c、 ku、 ka、 x 、 q 波段的单个和多个 LO(本机振荡器)。
