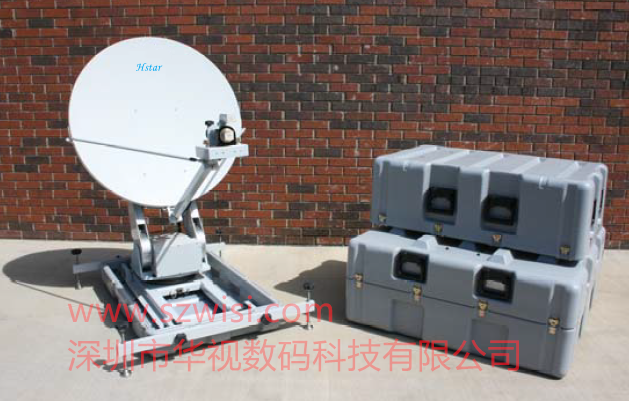

0.96米自动寻星天线，车载卫星天线,船载卫星天线,便携卫星天线

光学偏移，主焦

驱动系统专利旋转乐®

方位角上方的安装几何高程

反射器的偏振旋转/进给关于视轴

控制器一键自动采集

Electrical RF Receive Transmit

Frequency 10.70-12.75 GHz 13.75-14.5 GHz

Gain (Midband) 39.7 dBi 41.2 dBi

VSWR 1.30:1 1.30:1

Beamwidth on Orbital Arc (degrees)

-3 dB 1.8 1.5

-10 dB 3.2 2.8

First Sidelobe Level (Typical) -23 dB -23 dB

Radiation Pattern Compliance > 1.8° FCC §25.209, ITU-R S.528.5

Antenna Noise Temperature 32° K at 30° Elevation

Polarization Linear Orthogonal

Allowable Power -14dBw/4kHz per FCC, -0dBw/4kHz per ITU

Cross-Pol Isolation

On-Axis (minimum) 30 dB 35 dB

Off-Axis (within 1 dB BW) 28 dB 30 dB

Feed Port Isolation – TX to RX 70 dB

Satellite system Compliance Intelsat, PanAmSat etc.

Controller

Type Fully Automatic Satellite Acquisition, Peaking, and Cross-Pol

Adjustment using GPS, Compass, and Level Sensor Inputs

with Entry of Desired Satellite, Certified for Autocommissioning

on select services

Positioning Accuracy ≤ ±0.1 degree

Size

Standard Power Supply – 9” W x 10.25” D x 2.5”H – 4.5 lbs.

Display Unit – 5.5” W x 3.5” D x 1 3/8” H – 0.5 lbs

Optional Rack Mounted Config. 1 RU Chassis 8 in (20 cm) deep, Weight 3.75 lbs. (1.7 kg)

Input Power 110/240 VAC, 1 ph, 50/60 Hz, 5 amps peak, 1 amp cont.
