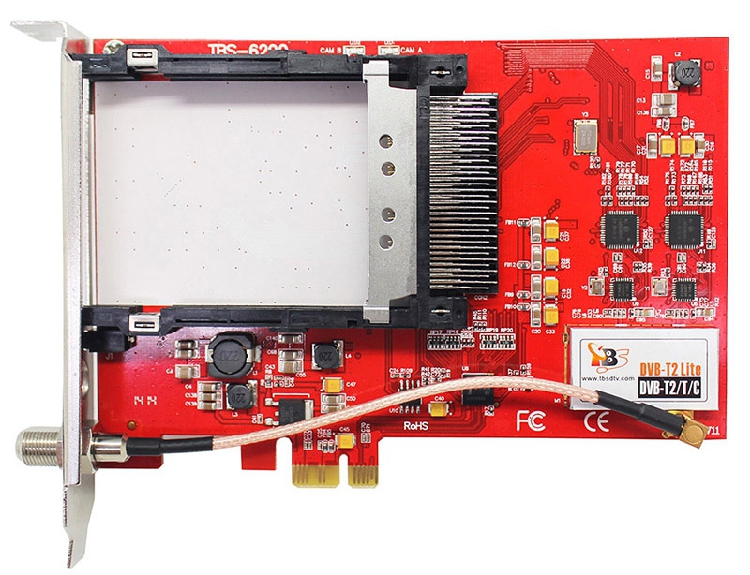

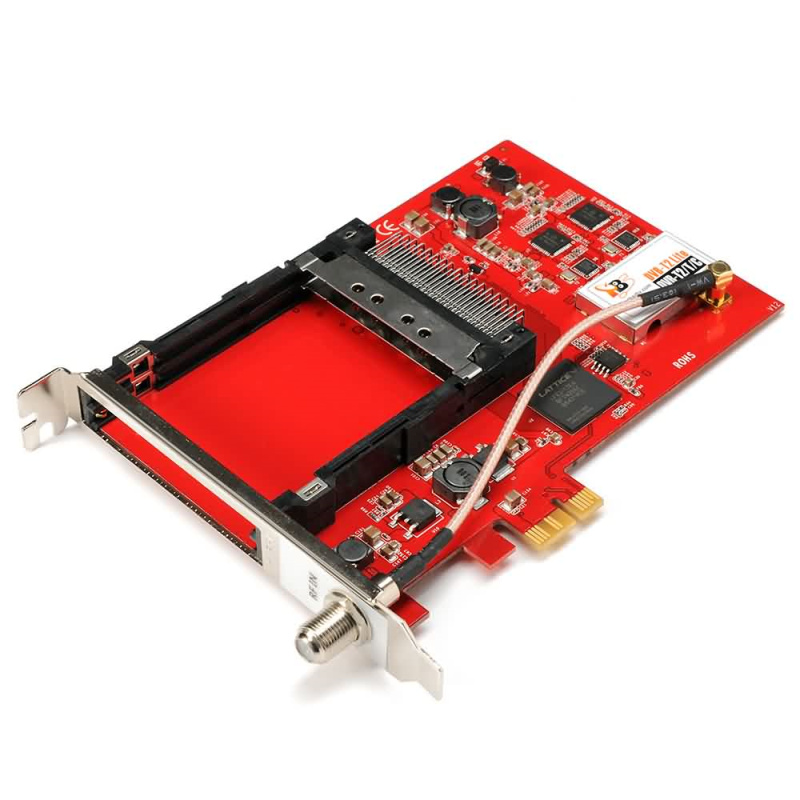

TBS6290SE DVB-T2/T/C双Tuner输入双路地面广播电视接收卡(带CI)
TBS6290 DVB-T2/T/C 双Tuner输入 双CI PCIe 数字电视卡TBS6290 is the latest DVB-T2/T PCI Express tuner, it’s equipped with dual tuner and dual CI slot, which allows you to enjoy two live terrestrial TV channels from two different frequencies at the same time, and it supports both reception of FTA (free to air) TV channels and encrypted TV channels. TBS6290 can be used as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. With the time-shifting function, it also enables you to pause a live broadcast and continue from where you left. This DVB T2 PC TV card is ready with windows BDA driver and Linux driver.
It's ideal for watching UK Freeview SD and HD channels on your desktop PC. Please ensure you can receive the Digital Terrestrial Television (DVB-T, DVB-T2, Freeview) service in your region. The TBS6290 requires you use a high-gain roof aerial to enable and enjoy reliable digital television reception throughout the UK.
主要功能:
Dual CI slot
Dual channel receiving simultaneously
DVB-T2/T/C SD or HD TV receiving
High-definition video, real-time and scheduled video recording
High sensitivity DVB-T2 Dual Tuner for the best digital TV reception
Windows BDA driver and Linux Driver ready
产品规格:
Support PLP (Physical Layer Pipe)
- DVB-T2/T2 Lite/T
Receiving channel: VHF band and UHF band
Channel bandwidth: 6, 7, 8 MHz
DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
Guard internal: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
Intermediate frequency
IF mode: low IF
Center IF Frequency: 3-5 MHz
Note: default 4MHz
RF-Input impedance 75Ω (IEC-DIN female)
RF-Output impedance 75Ω (IEC-DIN male)
- DVB-C
Fully compliant with DVB-C and ITU J83 A/B/C specifications
Receiving Frequency: 47~862 MHz Tuning Range
Input level: -65~-10dBm
16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support
Symbol Rate: 0.87 to 9Mbaud
TV card size: 145x104.5mm (length x height)
Power consumption: 12V*600mA=7.2W
3.3V*200mA=0.66W
系统需求:
Windows XP / Vista/ 7/8, Linux
Pentium 4 2.0 GHz, Pentium M 1.3 GHz
For HDTV: 2.6 GHz multi core processor
Hard disk with min. 1 GB free capacity
Sound and graphics card with support for DirectX 9 or higher
Available PCI Express x1, x4, x8 or x16 slot
CD/DVD drive for software installation
   *The TBS6290 is with PCI Express x1 interface, which is compatible with motherboard that has PCI Express x4, x8 or x16 interface.
包装清单:
1 x TBS6290 DVB-T2/T/C Dual Tuner Dual CI PCIe Card
1x IR receiver1x Aerial
