In response to the imminent rollout of 5G services across India, GARDINER has introduced a 5G interference rejection bandpass filter (BPF), as one of the various mitigation measures to protect our customers’ C-band traffic against out-of-band interference due to the deployment of 5G networks.

Here are the other Tool or products for 5G Rejection –

· High 5G Interference – You should use only the Bandpass Filter

· Medium 5G Interference – You should use a Bandpass filter or GARDINER 3100BPF LNB.

· Low 5G Interference – You can use GARDINER 3700LNBF or GARIDINER 3100BPF LNB

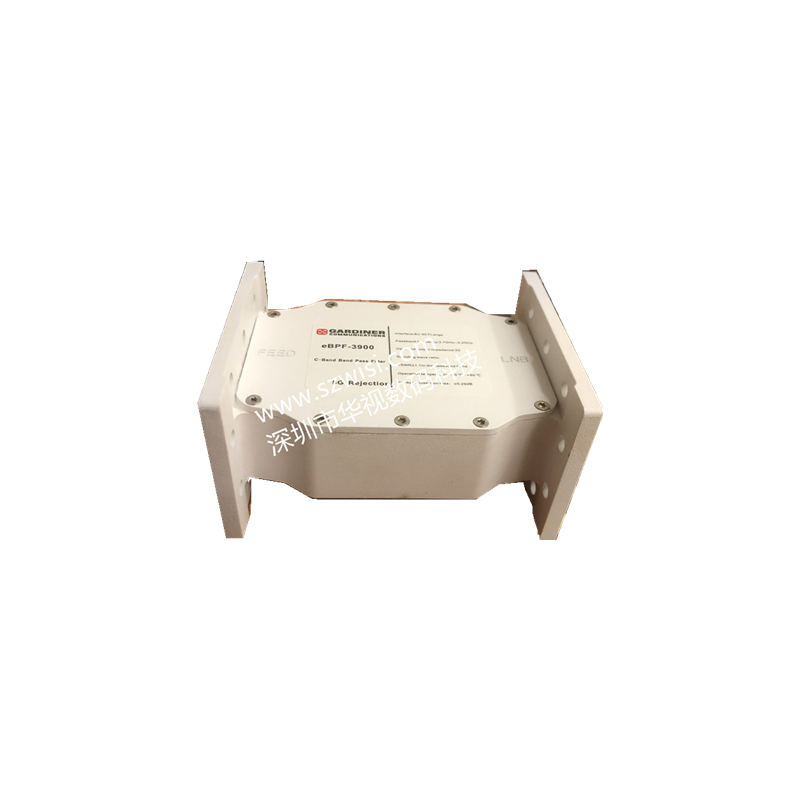

GARDINER C-BAND 5G Interference Rejection Band Pass Filter

This GARDINER C-Band 5G bandpass filter is very useful if you are Satellite TV channel is freezing due to 5G signal interference. You can have to check that Your TV Channel is coming on which frequency like low frequency for a low pass filter, or if you are receiving your TV channel using a High band then you can use a high Bandpass filter circuit.

This C-Band Pass Filter is very useful for high 5G Interference, For example, if any 5G mobile tower nearby your satellite dish antenna.

Kea Feature

• Rejects terrestrial interference in C-Band (5G, Telecom Radar, and C-Band transmitter)
• Easily installed between the feed and LNB
• Suitable for use with Norsat’s C-Band LNBs
• Environmentally sealed and moisture resistant

SPECIFICATIONS –

Frequency Range 3.70 to 4.20 GHz
VSWR 1.11: 1 max.
Insertion Loss in Band 0.3 dB max.
Rejection –
76 dB min at 3.650 GHz and 4.250 GHz
79dB min at 3.550 GHz and 4.350 GHz
85dB min at 3.500 GHz and 4.400 GHz
Group delay variation within +/-0.5MHz 0.4 sec
Weight – 499 g

FAQs –

Which 5G Filter LNBF should use?

Currently, in India, three types of 5G interference solutions are available.

1.    C-Band 5G Filter LNBF (with Feedhorn)

2.    C-Band 5G Filter LNB (Without Feedhorn)

3.    C-Band BandPass Filter (No LNB and Feedhorn included).

What is the ideal band pass filter?

All Are Band Pass Filter is good and Ideal but It is depends on your requirement that which satellite frequency or satellite TV channels are blocking or freezing in your area.
So you should buy that bandpass filter which is freezing.

What is the range of band pass filter?

There are lots of Band pass filters according to Frequency or brandwidth spectrum. You have to choose according to your freezing.

How do I choose a band pass filter?

Just check your satellite receiver that which satellite TV channels are freezing due to 5G interference or Terrestrial interference. So choose the Bandpass filter which can pass a special that frequency is blocked by 5G.

You can find a detailed article about 5G interference LNBs here.
